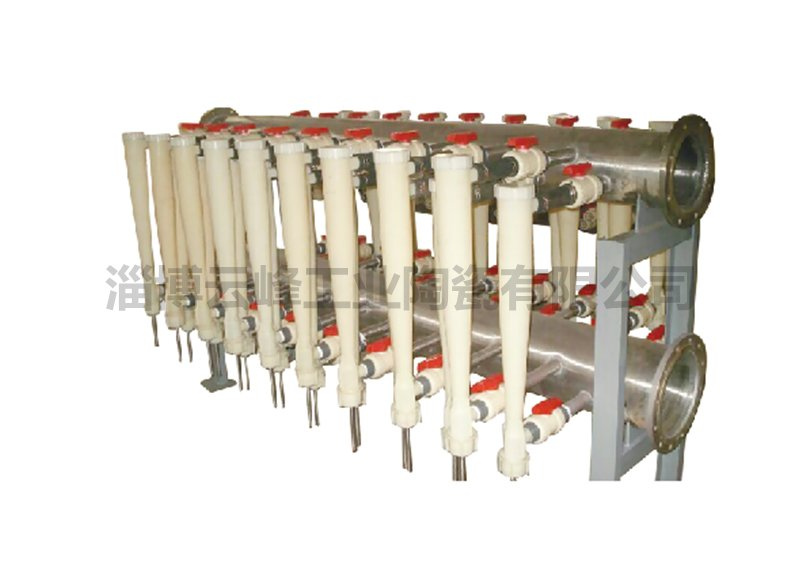

High concentration of slag eliminator manufacturers with you to understand the high concentration of slag eliminator - waste pulp purification equipment, I hope to help you. High concentration slag eliminator is the waste pulp purification equipment. Used to remove relatively dense impurities, such as stones, metals, etc.

The upper part is the low-pressure head pump blade, and the lower part is the impeller. This kind of low pressure difference high concentration slag eliminator with rotating impeller, its slag removal efficiency is higher, generally can handle the concentration of 3%~6% slurry, slag from the lower collector.

A certain amount of clear water is passed into the upper part of the slagger, so that the good fibers are washed and recycled without falling into the slagger tank. Slurry discharge intermittently, can discharge slag manually or automatically. The slag eliminator is essentially an important protective equipment, which can ensure the normal operation of the dredging machine and screening equipment and avoid accidental damage and excessive wear. When using the high concentration slag remover, the following operating conditions should be mastered:

1. Slurry inlet pressure

Slurry feed pump with large head (>20m) should be selected to ensure slurry feed pressure.

2. Dilute water pressure

Because there is a certain pressure inside the slag eliminator, the diluting water pressure is required to be above 0.2mpa, and a check valve is installed before the diluting water pipe to prevent the slurry from plugging into the clear water pipe.

3. Discharge slag regularly

According to the slag content of raw materials to find out the law of slag discharge, according to the time of slag discharge operation rules, timely slag discharge, so as not to affect the slag removal efficiency and smooth discharge of slag.
4. Slurry concentration

The slurry inlet concentration stipulated by the domestic high concentration slagger is 3.0%~4.5%, and the practice shows that the slurry inlet concentration of 3% is better.

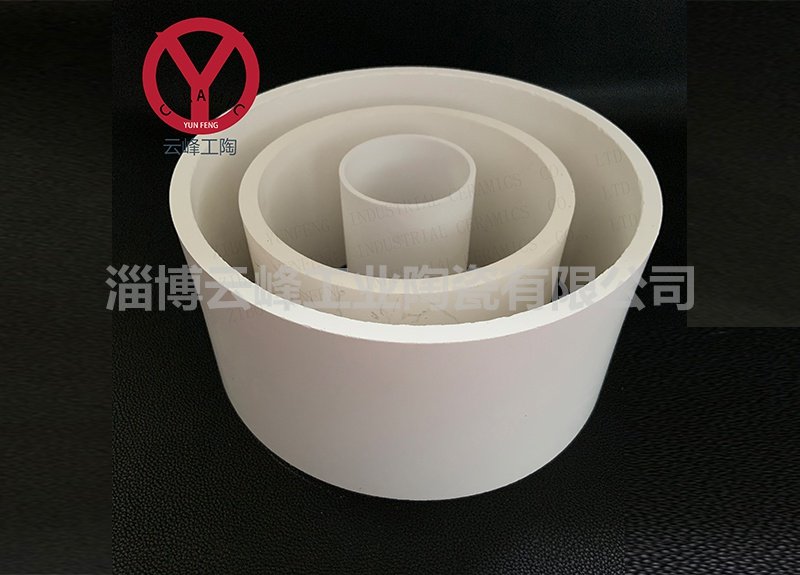

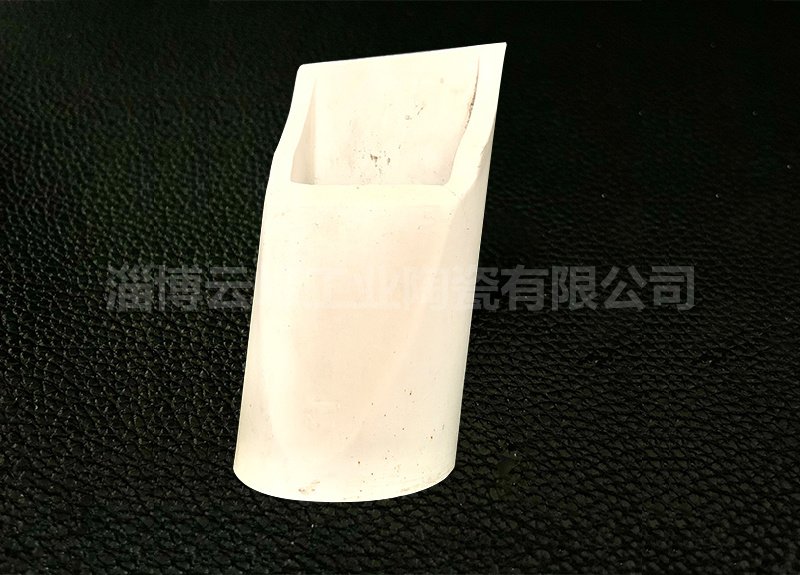

Zibo Yunfeng industrial ceramics Co., LTD. Was founded in 2001, the main products are medium and low concentration slag eliminator, high concentration slag eliminator, alumina ceramics, alumina products, wear-resisting ceramic pipes, dewatering components, mining equipment and accessories, etc., inquiry hotline :13806435563.
